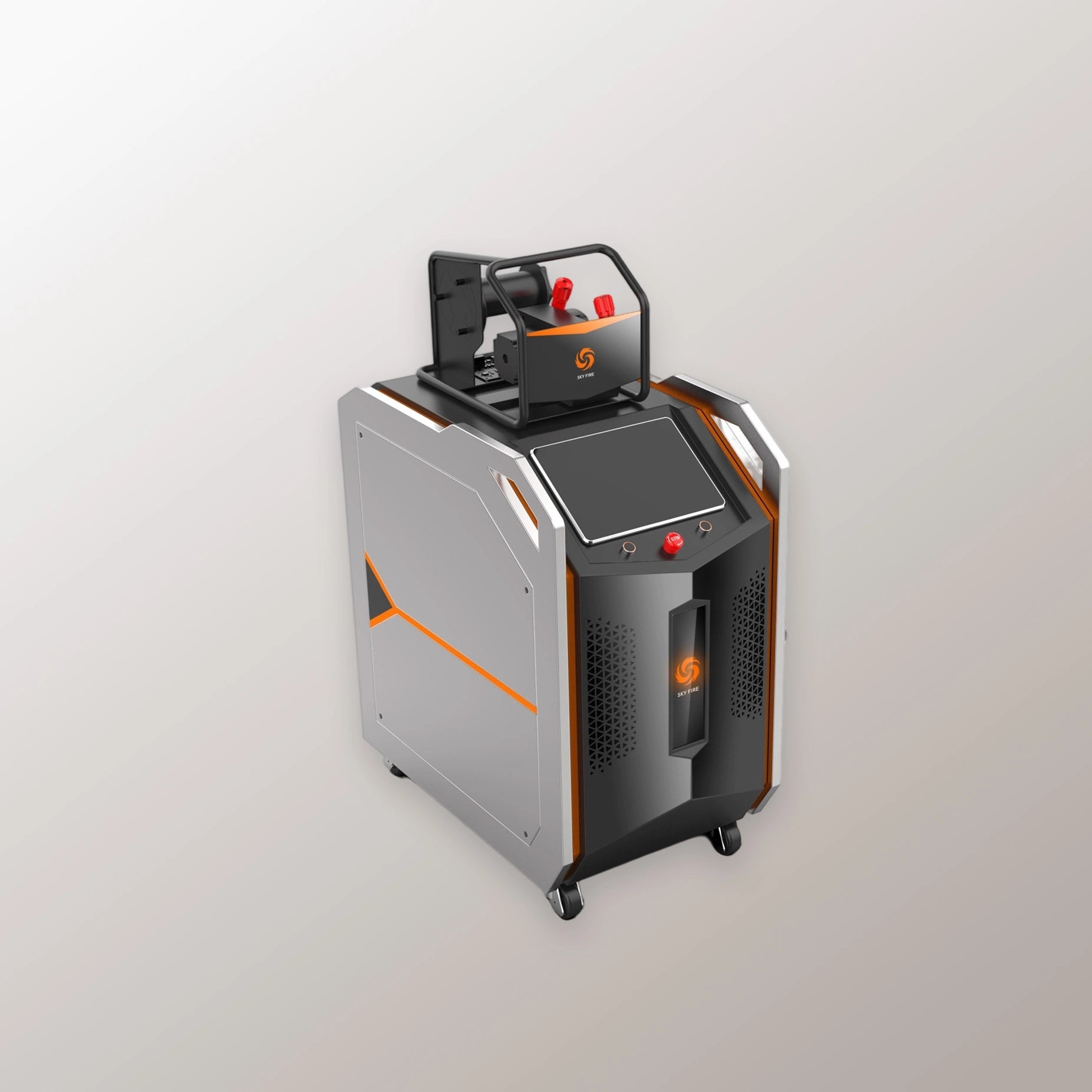

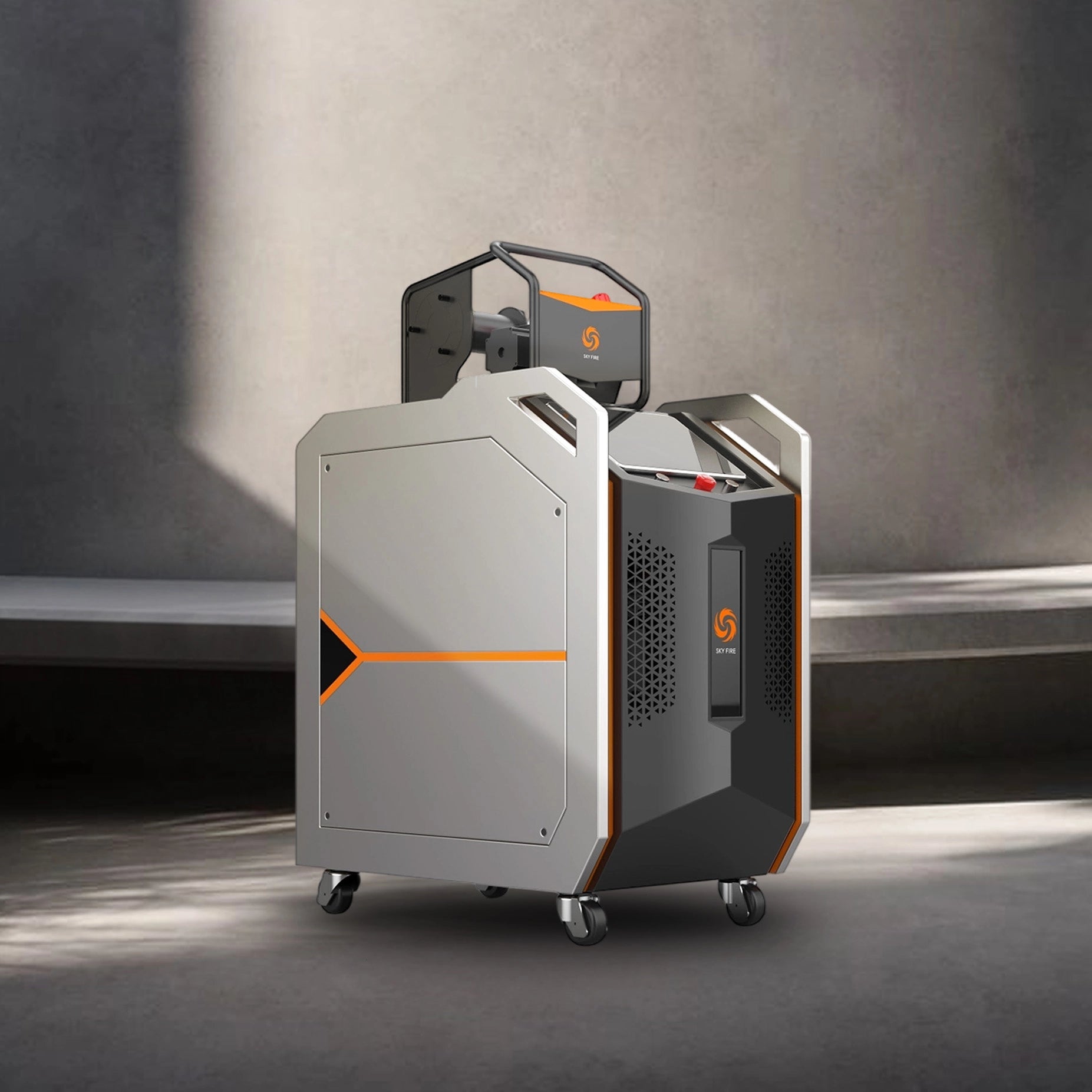

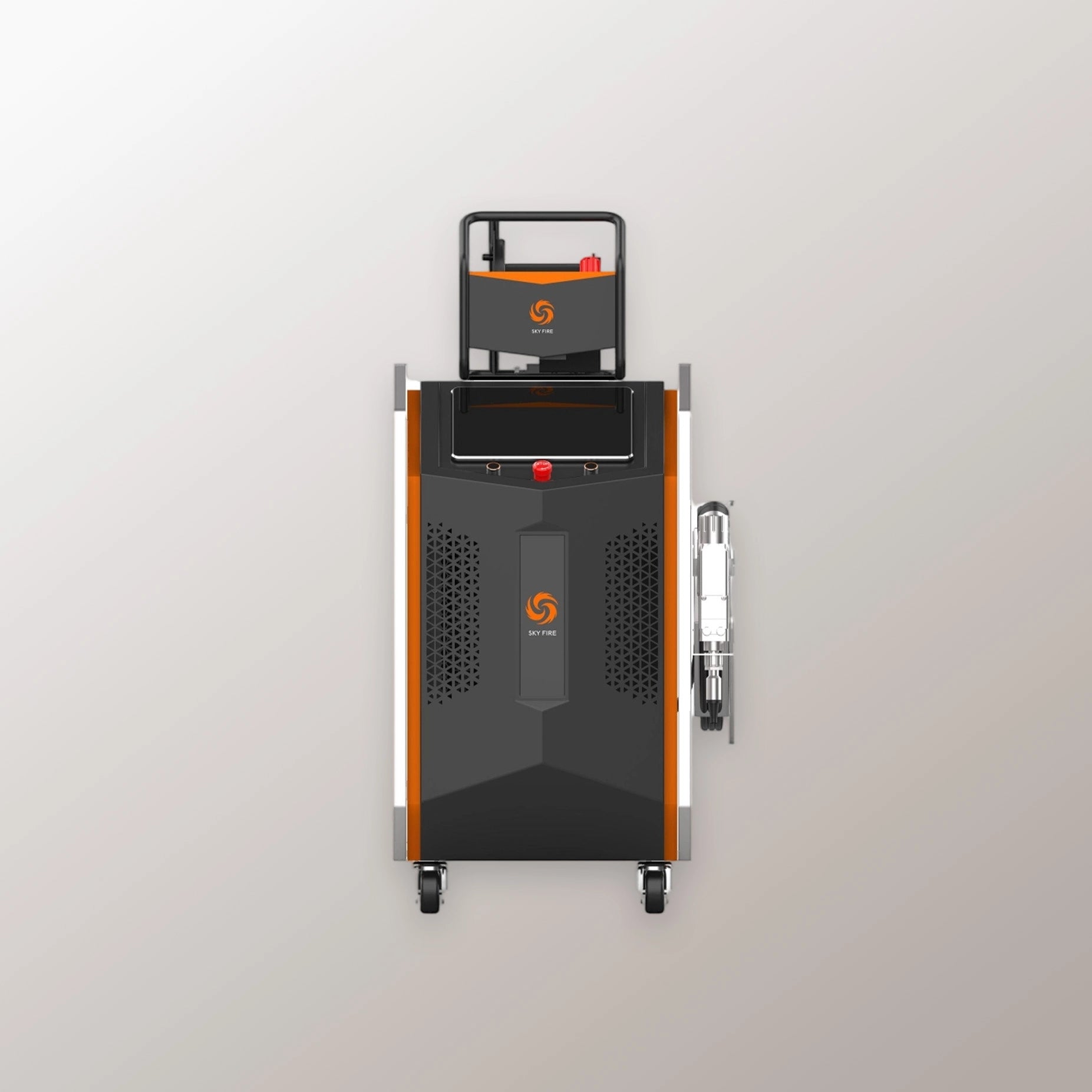

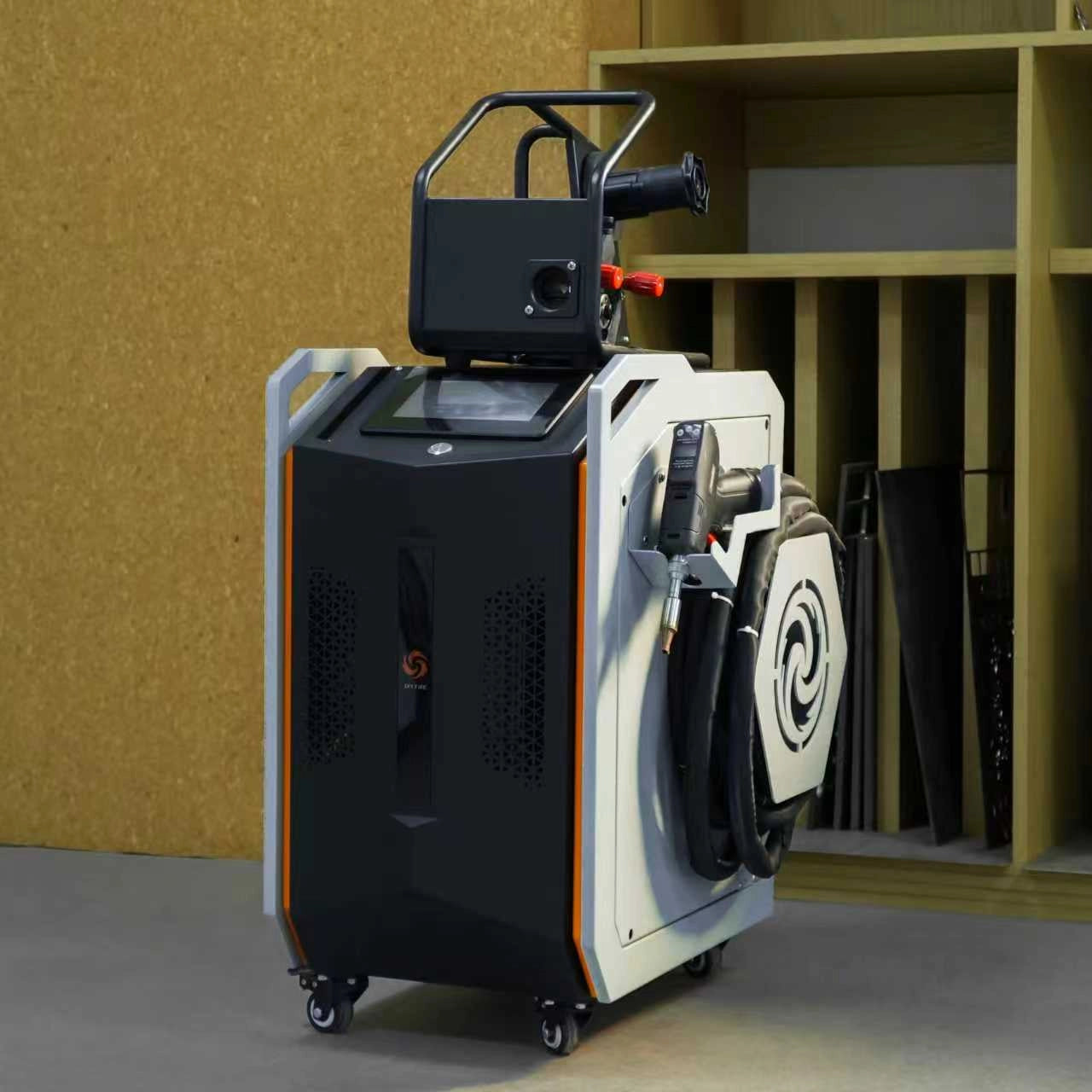

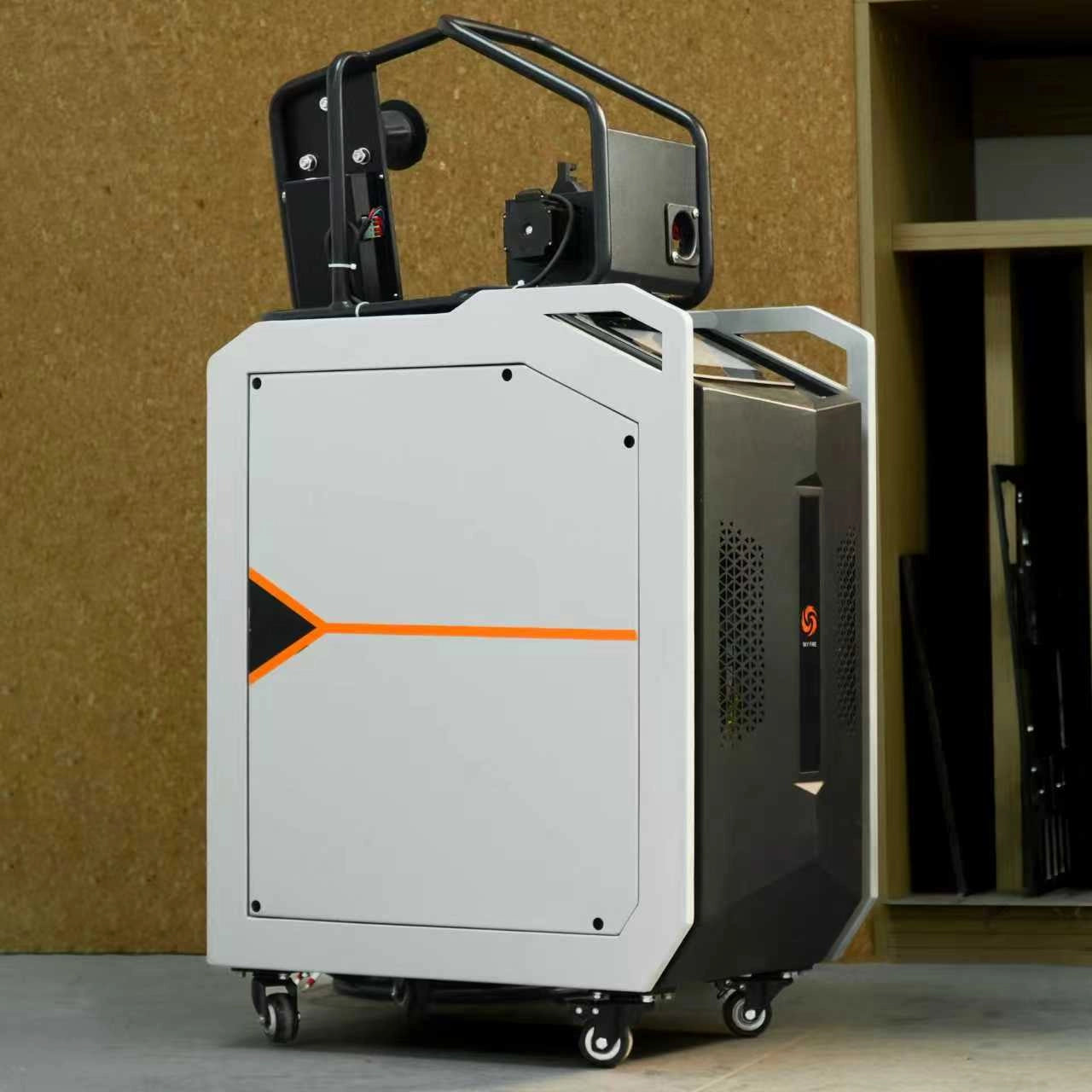

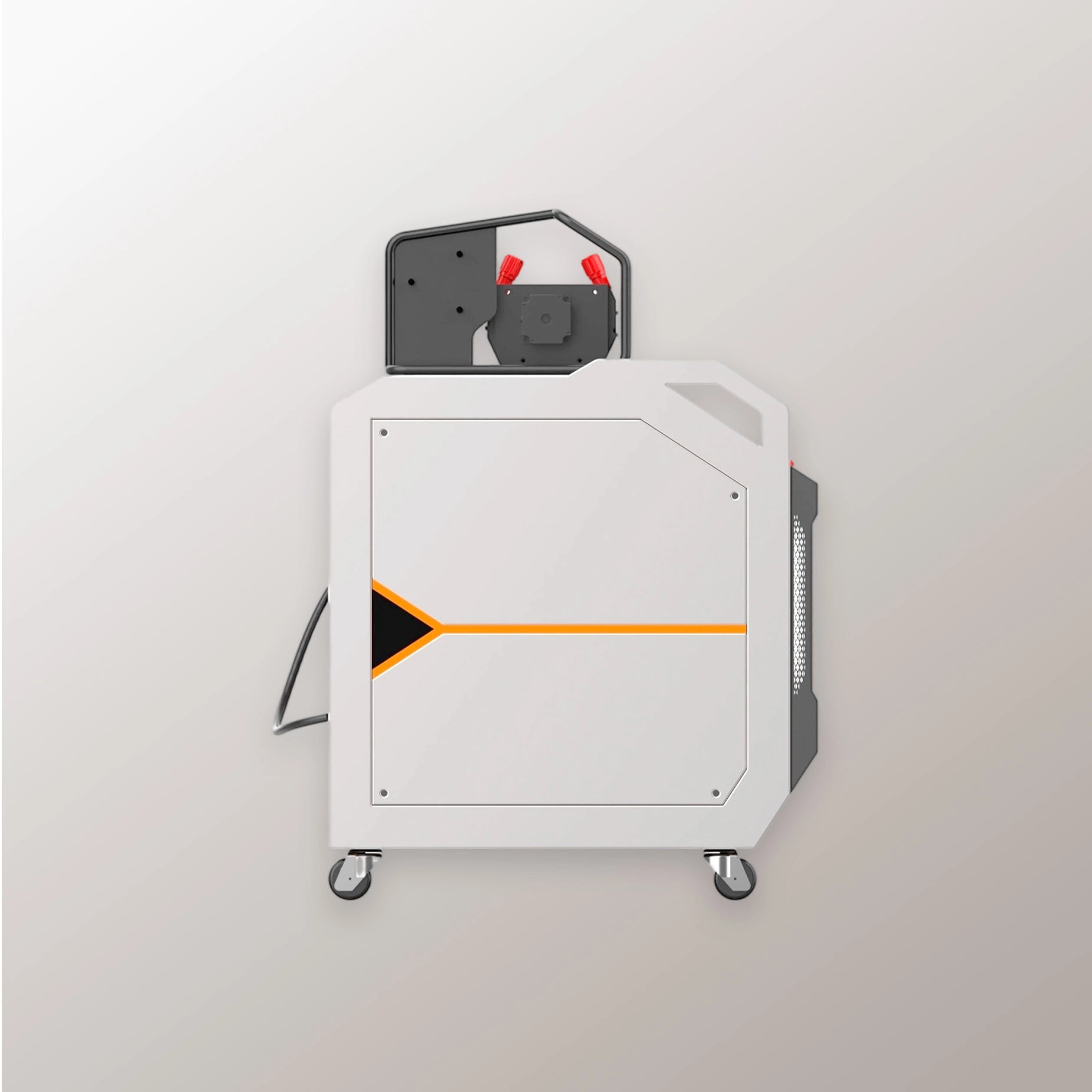

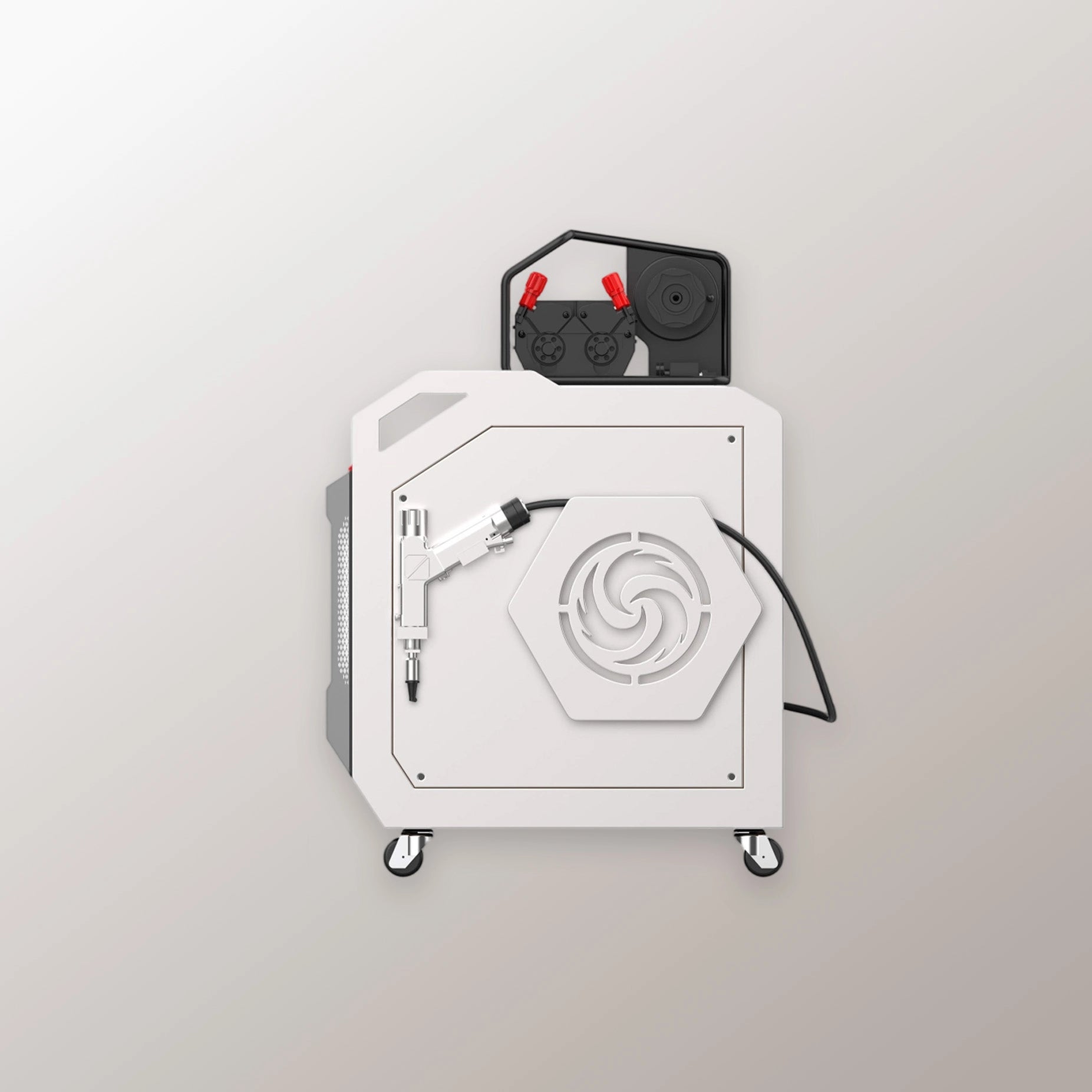

The WeldAir air-cooled handheld laser welding machine is a high-performance, portable laser welding device suitable for precision welding of various metal materials. It incorporates advanced air-cooling technology and an intelligent wire feeding system, combined with a user-friendly operation interface, to provide users with an efficient, stable, and safe welding experience.
Core Features
Efficient Air-Cooling System: Utilizes phase-change cooling technology, eliminating the need for an external water cooling system and making operation more convenient.
Intelligent Wire Feeding System: Supports continuous/pulse wire feeding modes, compatible with 0.8/1.0/1.2/1.6mm welding wires, and features automatic wire retraction and replenishment.
Dual-Mode Operation Interface: Offers both simplified and professional modes to meet the needs of beginners and experts alike.
Multiple Safety Protections: Includes ground wire detection, shielding gas pressure monitoring, lens temperature alarm, and other functions to ensure operational safety.
Flexible Welding Modes: Supports four output modes: continuous, spot, pulse, and cutting, adapting to various welding scenarios.
Technical Specifications
Item
Operating Mode
XS
Output Power (W)
XS
Polarization Direction
XS
Power Adjustment Range (%)
XS
Center Wavelength (nm)
XS
Output Power Instability (%)
XS
Red Light Indicates Output Power (mW)
XS
Output Header
XS
Beam Quality M²
XS
Output Optical Cable Length (m)
XS
Control Method
XS
Cooling Method
XS
Operating Voltage
XS
Output fiber cable core
XS
Output fiber cable length
XS
Item
PARAMETER
Operating Mode
CONTINUOUS/MODULATED
Output Power (W)
1200 ± 50
Polarization Direction
RANDOM
Power Adjustment Range (%)
10~100
Center Wavelength (nm)
1080 ± 5
Output Power Instability (%)
±1.5
Red Light Indicates Output Power (mW)
0.5~1
Output Header
QBH/CUSTOMIZED
Beam Quality M²
≤1.3
Output Optical Cable Length (m)
7
Control Method
CONTROL LINE/BLUETOOTH
Cooling Method
AIR COOLING
Operating Voltage
220V
Output fiber cable core
25UM
Output fiber cable length
10M
