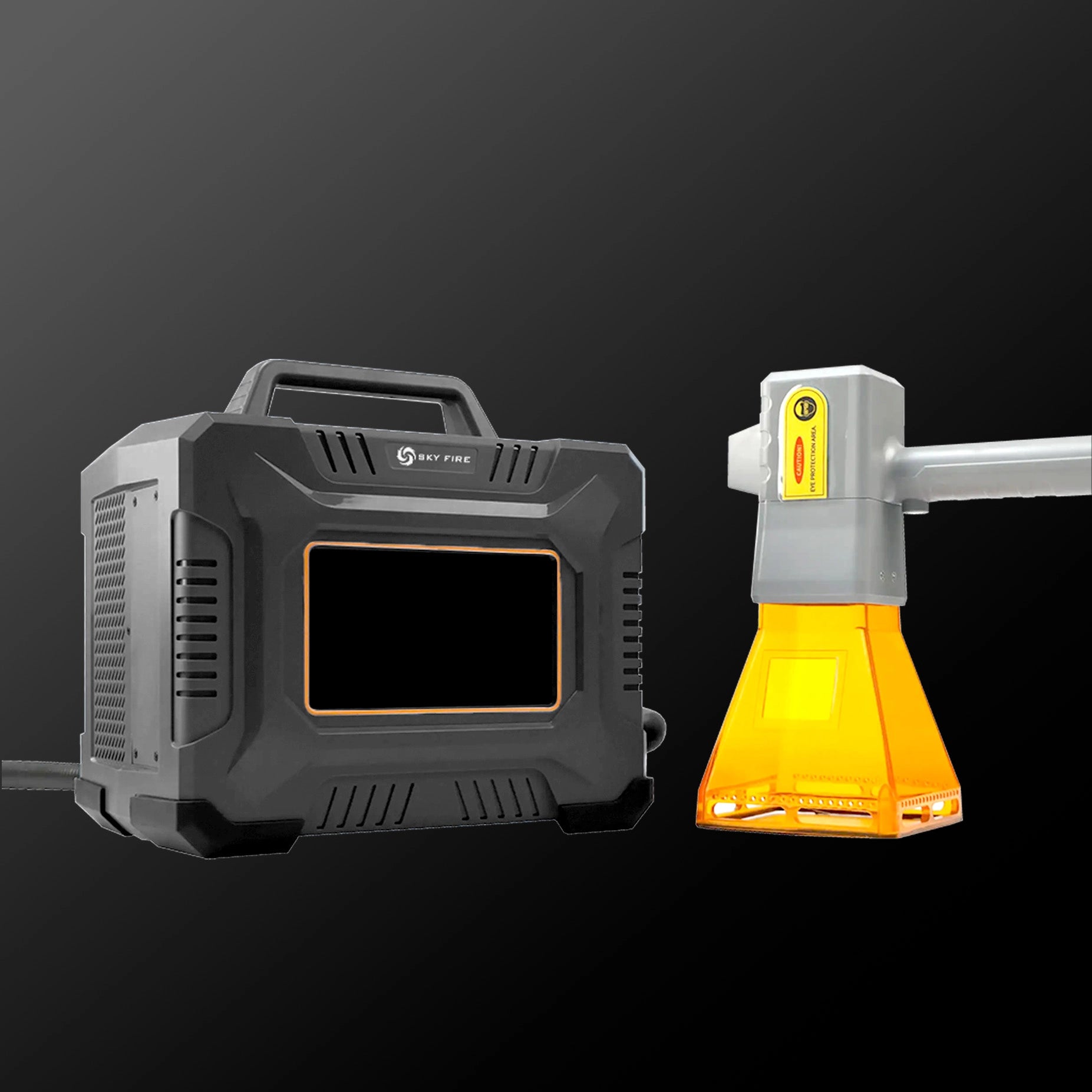

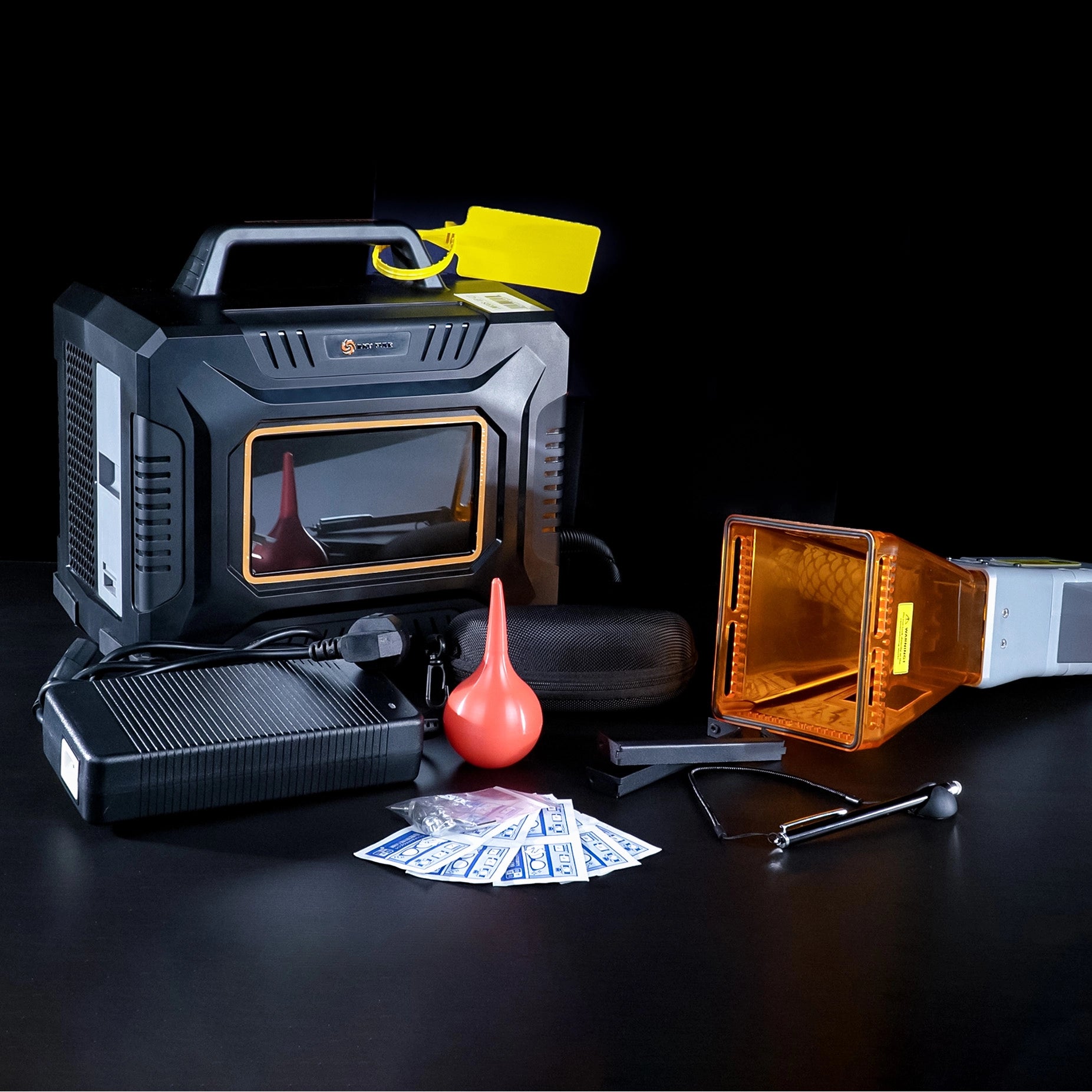

This handheld laser marking device is a portable and efficient industrial marking solution, specifically designed for large or hard-to-move components. It features a compact and user-friendly design with a built-in lithium battery, enabling wireless operation in various environments. It can create permanent "green" marks on both metals and non-metals.
Features:
Small and lightweight, with the entire unit weighing only about 6kg, making it easy to carry. The fixed focal length eliminates the need for adjustment, allowing direct marking on workpieces that are difficult to move.

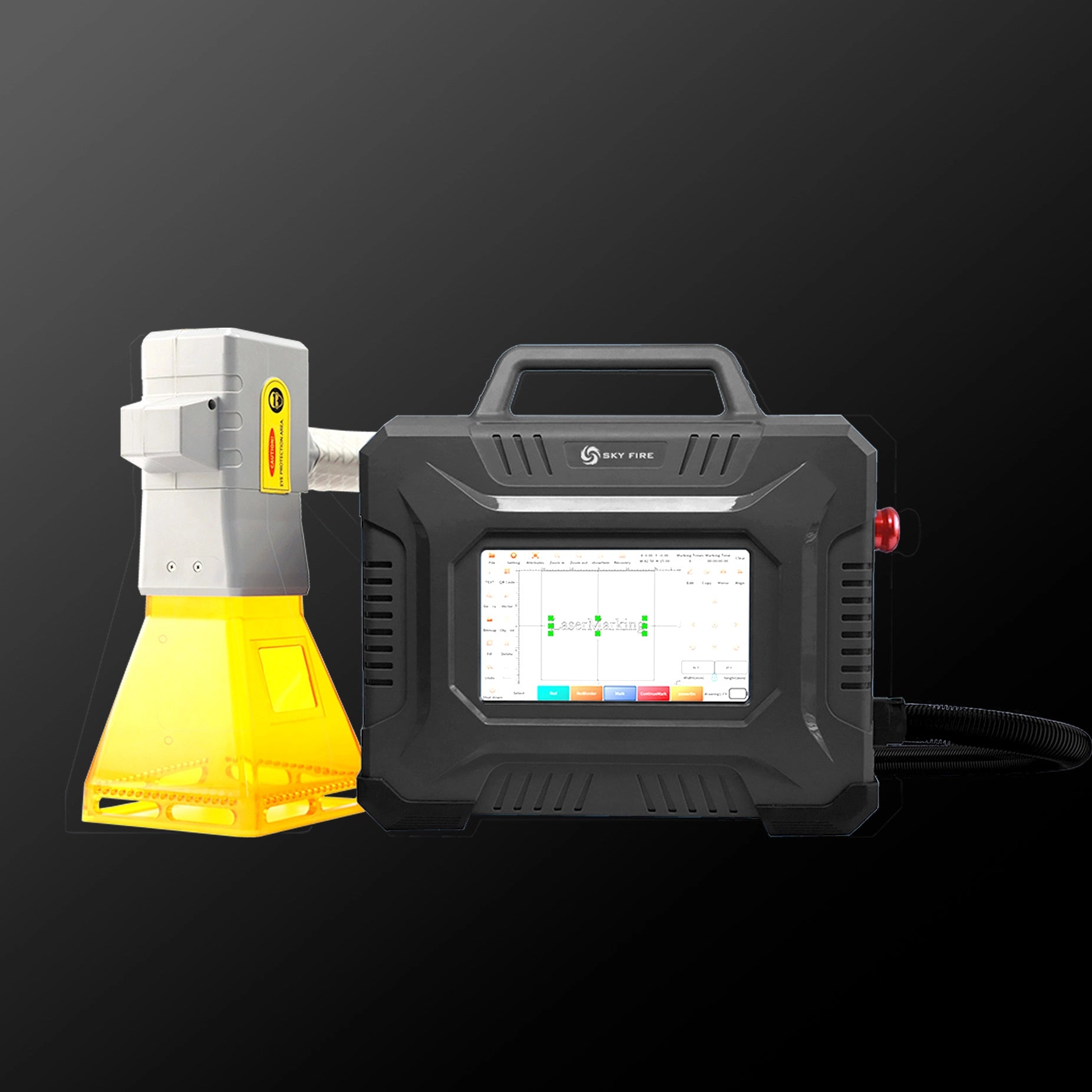

Equipped with a built-in Linux system and touchscreen operation, it can complete marking tasks without an external computer.
Can also be connected to external devices such as a keyboard, mouse, barcode scanner, or computer for flexible operation expansion.

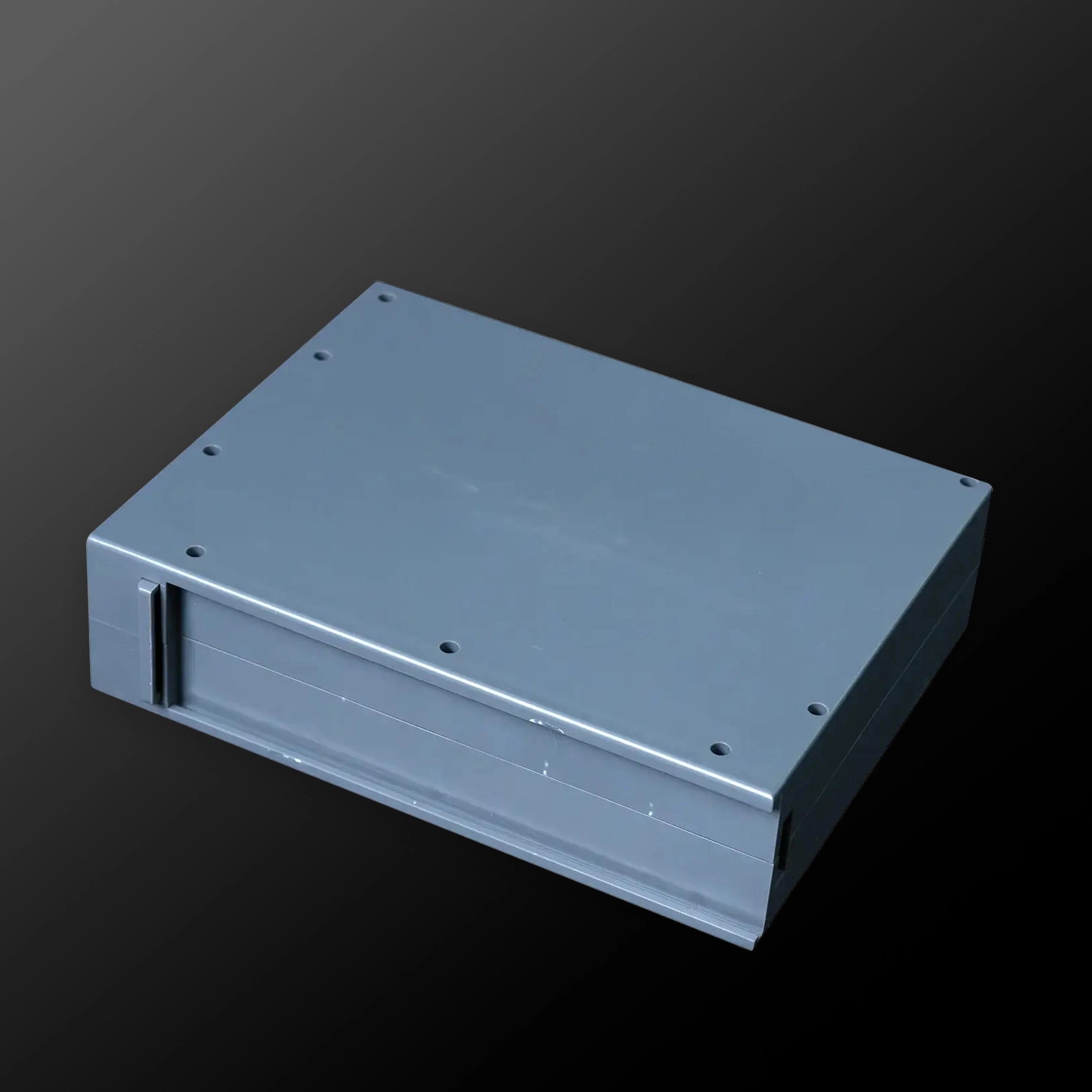

Optional lithium battery eliminates power constraints, enabling truly mobile marking.

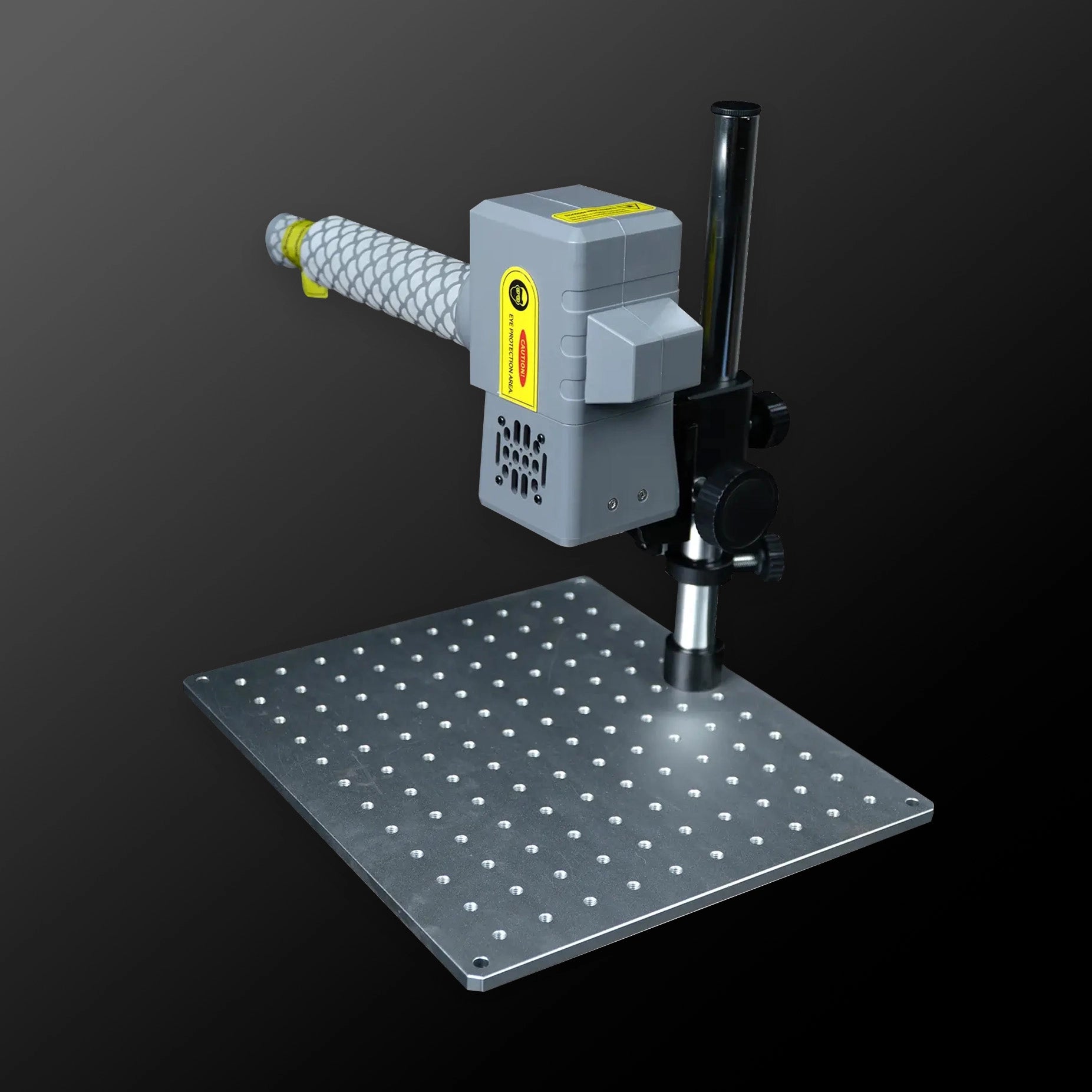

When paired with a desktop marking stand, the detachable etching head converts it into a desktop device for small-batch processing. Reattaching the head restores handheld mode for mobile marking, achieving dual functionality with one machine.
Highly integrated and compact design, occupying minimal space with low maintenance costs.
Parameter table
Model
Machine power consumption
XS
Working ambient temperature
XS
Humidity of working environment
XS
Average laser power
XS
Power instabilities
XS
Laser type
XS
Pulse Width
XS
Maximum single pulse energy
XS
Beam quality (M²)
XS
Power adjustment range (%)
XS
Full power frequency (kHz)
XS
Cable length
XS
Cooling method
XS
Scanning Range (L*W)
XS
Machine size (L*W*H)
XS
Machine weight
XS
Marking handle weight
XS
Operating method
XS
Model
LM
Machine power consumption
<200W
Working ambient temperature
5℃～40℃
Humidity of working environment
≤80%
Average laser power
20W
30W
50W
Power instabilities
2%
Laser type
PULSE
Pulse Width
80-110NS
Maximum single pulse energy
0.7
0.7
1.1
Beam quality (M²)
<1.6
Power adjustment range (%)
10-100 (GRADIENT ADJUSTABLE)
Full power frequency (kHz)
27
30
45
Cable length
1.9M
Cooling method
AIR COOLING
Scanning Range (L*W)
60×60MM
100×100MM
150×150MM
Machine size (L*W*H)
315×215×291 MM
Machine weight
ABOUT 8KG (INCLUDING BATTERY)
Marking handle weight
<0.9KG
Operating method
HANDHELD
